Micro Drill Bit

Description

Application domain: for implantology
Material: Ultra high rust-proof and high wear-resistant stainless steel, ceramic
LZQ is an OEM factory that produces a variety of dental implant drills, for example, Guide Drill  P108, Profile Drill  P144, Parallel Pin  P37, Drill Key  P47, Lance Drill  P172, Kirschner Wires  P178, etc. We can also produce complete surgical kits for customers.

Product Details

We can produce with super hard and super finish grinding and satisfy your requirement of any type of shank, web thickness, width of chip flute, land, drill tip, inner cooling hole, structure of cutting  edge, angle of cutting edge, degree of sharpness of cutting edge, and the dimension tolerance can be up to ±0.003mm (3μm)

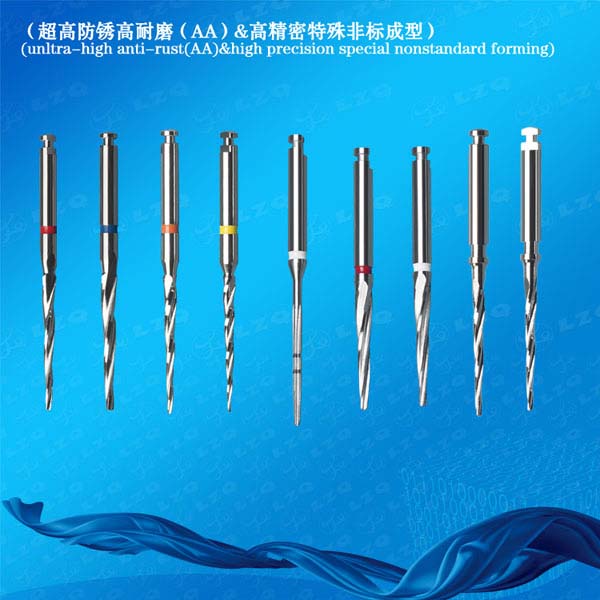

micro drill bit P103

1. ultra-high anti-rust high wear-resistant stainless steel
(AA)(HRC52°±2°)( regular stock)
2. ultra-high elasticity,low wear-resistant stainless steel(AA)

Safe Drilling
  • A stopper can be attached that makes it easy and safe for even beginners.
  • Lateral deletion is possible. Direction can be modified during drilling.

Speedy Drilling
  • Tapered drill can finish drilling very quickly as 2/3 of the body in inserted into the tooth without rotating.

micro drill bit P103

Diameter Φd

0.50

0.70

0.90

1.10

DiameterΦD

1.69

1.89

2.09

2.29

Length of cut L1

17.05

17.05

17.05

17.05

Shank Dia.

2.35

2.35

2.35

2.35

Overall length L

36.65

36.65

36.65

36.65

No. of flute Z

3

3

3

3


We can produce drill guide, adapter and structure of any size, tolerance and shape according to your drawings or samples.

Dental implant a prosthetic enamel with an anchoring shape surgically implanted beneath the mucosal or periosteal layer or in the bone.
A prosthetic teeth that is anchored in the jawbone to change a missing tooth.
