Plastic particle rotary cutter Pelletizer Knife Water ring cutter

Description

Super-hard processing of professional, special, non-standard, special shaped and new products with any kind, any shape and tolerance. If you have any similar inquiry, please fax us your address or call us to get samples in the photos and related catalogue for your reference (only a small amount is allowed).

We keep around RMB 20～30 Million turnover stock articles such as raw material, semi-products, finished products in an ordinary year, we are capable to produce according to drawing or sample provided by the customer, so as to present you a favourable cost-performance ratio…Welcome to visit our factory.

CONTACT NOW E-MAIL TO US

Product Details

Product Info

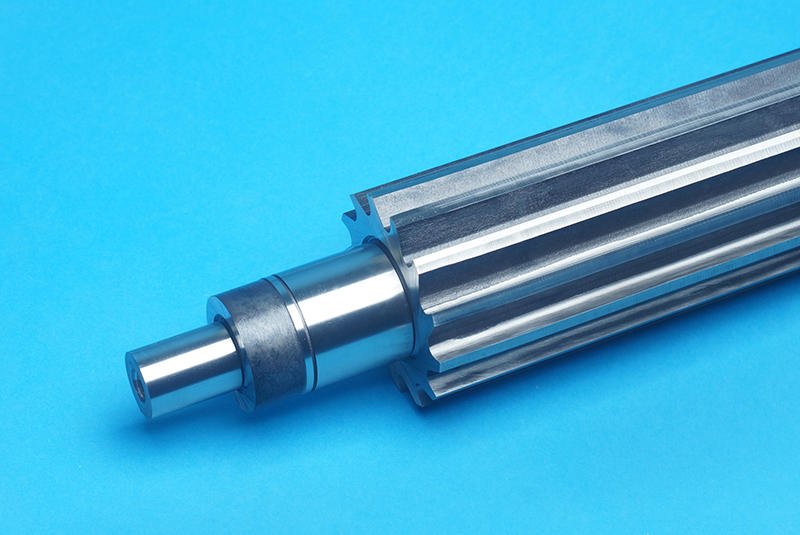

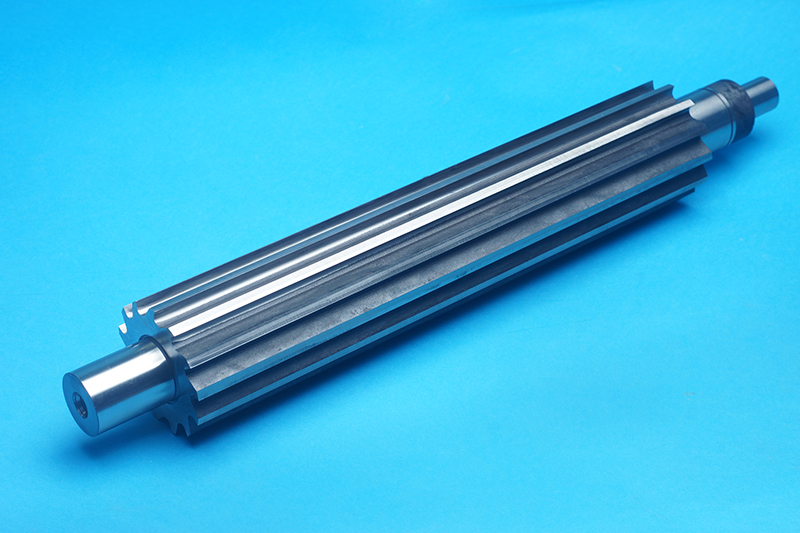

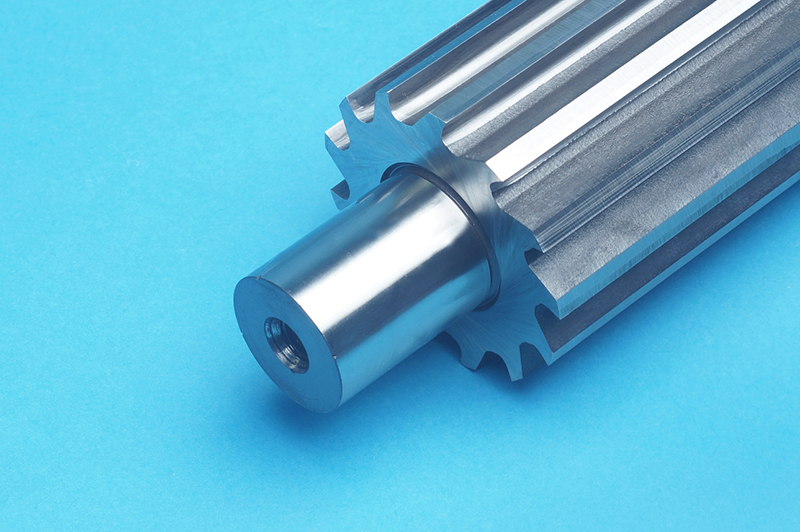

Plastic particle rotary cutter Pelletizer Knife Water ring cutter

Super high wear-resistant/ high impact-resistant application/ high precision

Professional super-hard machining of special, non-standard, special-shaped, new products with any type, shape and tolerance

Product Description

According to the drawings, samples, and requirements, we can produce ultra-long, ultra-wide, ultra-thick, high-precision, and extremely complex shaped products.

Length L=5mm~6500mm series, width B=2mm~800mm series, thickness T=0.10mm~120mm series

1. The minimum thickness of the workpiece can be T= 0.20~0.06mm (the maximum thickness can be more than 800mm).

2. The minimum diameter of the workpiece can be φD=φ0.006 (the maximum diameter can be more than φ600mm).

3. The longest length of the workpiece can be up to L=6500mm (the shortest length is not limited).

4. Flatness, parallelism∥, and precision tolerance can be as high as 0.005mm ~ 0.002mm ~ 0.001mm series.

5. The thickness tolerance of the workpiece can be as high as T±0.002mm~±0.001mm~±0.0005mm series.

6. Surface roughness can be as high as 0.2μm~0.1μm~0.05μm~0.01μm series.

Material

SKH55C:

(Special Hardness)

Special hardness high Cobalt powder steel, Quench treatment HRC66°±2°（HRA82°-84°）, Moreover HSS have above 2-3time use life. Correspond to ISO M35A.
