Face Milling Cutter

Description

Super-hard processing of professional, special, non-standard, special shaped and new products with any kind, any shape and tolerance. If you have any similar inquiry, please fax us your address or call us to get samples in the photos and related catalogue for your reference (only a small amount is allowed).

We keep around RMB 20～30 Million turnover stock articles such as raw material, semi-products, finished products in an ordinary year, we are capable to produce according to drawing or sample provided by the customer, so as to present you a favourable cost-performance ratio…Welcome to visit our factory.

CONTACT NOW E-MAIL TO US

Product Details

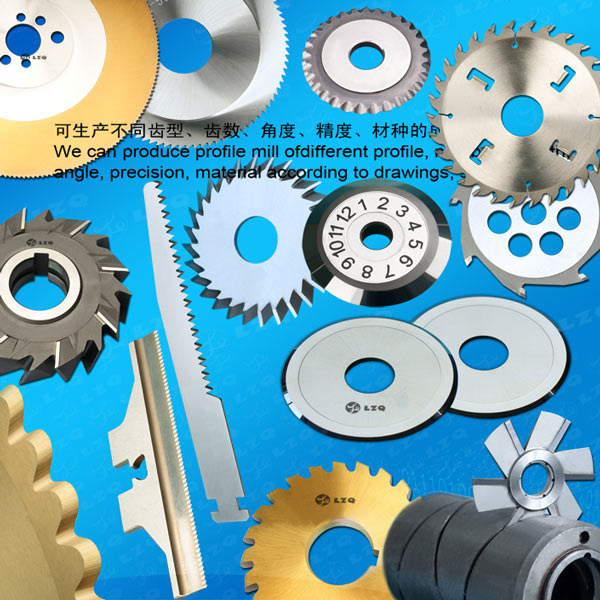

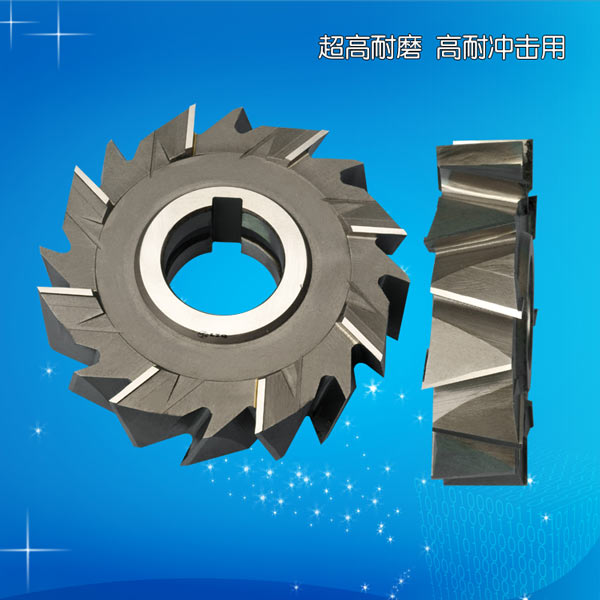

Our company supplies every kind of solid ultra micro-grain quality carbide slitting cutter with different tooth shape such as direct tooth, radius tooth, staggered tooth, high-low tooth, semi-circle keyboard milling cutter, T-type slot milling cutter, angle milling cutter, HSS cutting milling cutter, side and face milling cutter. Those products are widely used in glass accessories, bicycle parts, watches and etc of light machinery industry. They have a great advantage in quick cutting efficiency, high wear resistance and high hardness. We can control thickness tolerance in 5μm, outer diameter tolerance in 0.03mm, side runout in 5μm and surface roughness in 0.4μm. Those are used in a few pcs together and have very high precision.

"A" tooth:
a straight tooth (ratched type)
It is mainly applied to finish milling and cutting. Its milling and cutting depth is shallow, about 3~5mm.

"AW" tooth:
it is improved one based on "A" tooth. Tooth profile is left and right single inclined type. Its tooth function is the same as that of "A" tooth, but its efficiency is higher.

"B" tooth:
a curved tooth (cam-generated type)
Tooth profile is bending flat tooth, mainly applied to cut deep groove. The cutting resistance is stronger than "A" tooth and the groove is deeper.

Milling cutters are cutting tools typically used in milling machines or machining centres to perform milling operations (and occasionally in other machine tools). They remove material by their movement within the machine (e.g., a ball nose mill) or directly from the cutter's shape (e.g., a form tool such as a hobbing cutter).
