Saw Milling Cutter

Description

Super-hard processing of professional, special, non-standard, special shaped and new products with any kind, any shape and tolerance. If you have any similar inquiry, please fax us your address or call us to get samples in the photos and related catalogue for your reference (only a small amount is allowed).

We keep around RMB 20～30 Million turnover stock articles such as raw material, semi-products, finished products in an ordinary year, we are capable to produce according to drawing or sample provided by the customer, so as to present you a favourable cost-performance ratio…Welcome to visit our factory.

CONTACT NOW E-MAIL TO US

Product Details

Machined work piece's minimum thickness is up to T= 0.20~0.06mm(and its maximum thickness is up to more than 800mm)
Machined workpieces' minimum diameter is up to φD=φ0.006 ( and its maximum diameter is up to more thanφ 600mm.)
Machined workpieces' maximum length is up to 6500mm (there is no limit for minimum length)
Flatness, parallelism, precision tolerance can be 0.005mm ~0.002mm～0.001mm high.
Machined work piece's thickness tolerance is up to T±0.002mm~±0.001mm～±0.0005mm.
Surface roughness can be 0.2μm~0.1μm~0.05μm~0.01μm high.

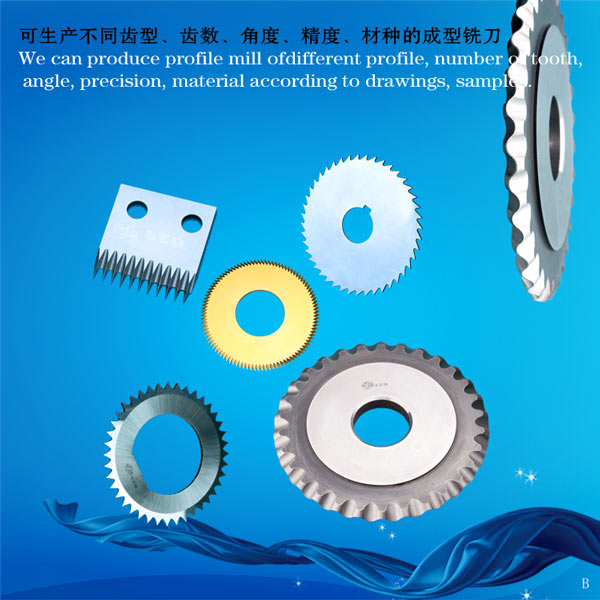

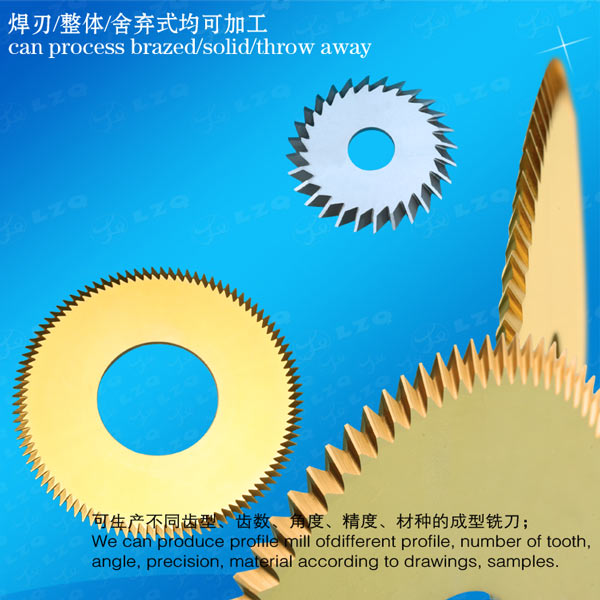

We can grind profile angle and dimension tolerance according to drawings, samples.

Roughing or Finishing: Different types of the cutter are available for cutting away large amounts of material, leaving a poor surface finish (roughing), or removing a smaller amount of material, but leaving a good surface finish (finishing). A roughing cutter may have serrated teeth for breaking the chips of material into smaller pieces. These teeth leave a rough surface behind. A finishing cutter may have a large number (4 or more) teeth for removing material carefully. However, the large number of flutes leaves little room for efficient swarf removal, so they are less appropriate for removing large amounts of material.
