Straight Drill


Application domain: for dental implantology
Material: Ultra high rust-proof and high wear-resistant stainless steel, ceramic
LZQ is an OEM factory that produces a variety of dental implant drills, for example, Guide Drill P108, Profile Drill P144, Cutting Bur/Bone File P190, Drill Stopper P31, Drill Bit 096, Abutment/Transfer P25, Bone Saw P250, etc. We can also produce the complete surgical kits for customers.

Product Details

Straight drill P97

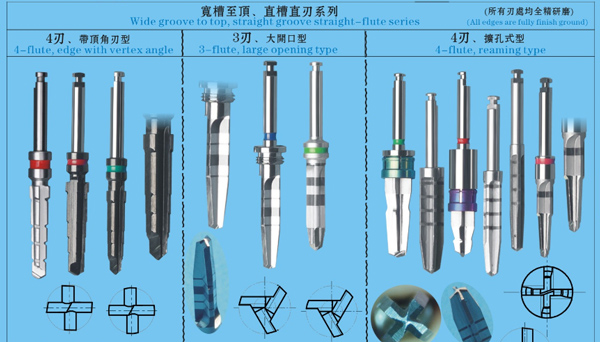

Chip collector, Bone deposition drill and reamer series commonly used for skeletal fragment collection and bone powder accumulation to the crest as reference:

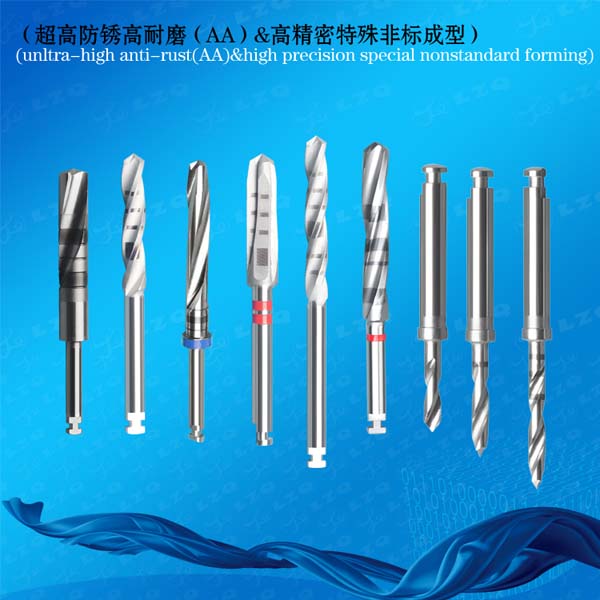

Regular stock material: Ultra-high anti-rust & high wear-resistant stainless steel (AA)(HRC54°±2°Section)

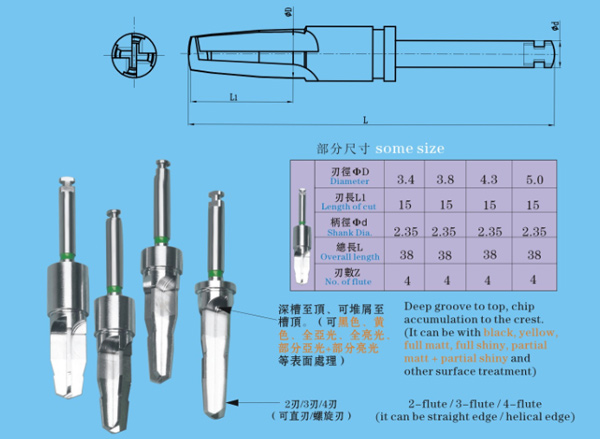

Deep groove to top, chip accumulation to the crest. (It can be with black, yellow, full matt, full shiny, partial matt + partial shiny and other surface treatment)

Straight drill P97

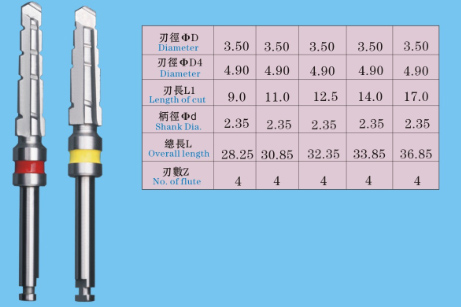

1. Commonly-used edge diameter: any size series between Φ0.80mm~Φ7.95mm
2. Conventional cutting length up to 55mm series,and total length up to 65mm, processed with any step, taper angle, shape, sharpness requirements

Straight drill P97

When a higher quantity of bone is needed, it can be taken from any other website (commonly the lower back of the bottom jaw) and transplanted to the implant site.
The maxillary sinus can limit the quantity of bone top in the back of the higher jaw. With a ' sinus lift' , bone can be grafted beneath the sinus membrane increasing the height of bone.
For an implant to osseointegrate, it needs to be surrounded by using a wholesome volume of bone. In order for it to continue to exist long-term, it wants to have a thick healthful tender tissue (gingival) envelope round it. It is frequent for both the bone or smooth tissue to be so deficient that the health care provider needs to reconstruct it both before or all through implant placement.

Multi-picture display

  • Straight Drill
  • Straight Drill
  • Straight Drill
  • Straight Drill
